Author Topic: My WIP dashboard / cockpit  (Read 100713 times)

sammy4413

  • Approved Newbie
  • *
  • Posts: 18
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #30 on: June 23, 2013, 12:56:41 pm »
Quote from: Jadran on June 15, 2013, 12:04:39 pm
Nice   ;D

Try connect pin 21 on white connector for fuel consumption


or connect the gauge consumer ? RPM ​​signal or Speed signal?
Logged

H.Guedes

  • Jr. Member
  • **
  • Posts: 73
    • View Profile
Re: My WIP dashboard / cockpit
« Reply #31 on: June 23, 2013, 03:51:07 pm »
The pin 21 of white connector goes to the OBC.  The pin for fuel gauge is an output. I test several ways and nothing works. At this moment only the fuel gauge don't work.
Logged

sammy4413

  • Approved Newbie
  • *
  • Posts: 18
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #32 on: June 23, 2013, 08:24:09 pm »
What is OBC ??
Logged

Jadran

  • Full Member
  • ***
  • Posts: 132
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #33 on: June 23, 2013, 08:53:31 pm »
BMW On Board Computer (OBC)  ;)
Logged

sammy4413

  • Approved Newbie
  • *
  • Posts: 18
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #34 on: June 23, 2013, 09:07:50 pm »
ok :) i know pin 21 is gauge consomer because where i connect in pro gauge or revburner ?? in signal RPM or signal Speed or...
« Last Edit: June 24, 2013, 12:22:14 am by sammy4413 »
Logged

sammy4413

  • Approved Newbie
  • *
  • Posts: 18
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #35 on: June 27, 2013, 06:55:11 pm »
up!
Logged

H.Guedes

  • Jr. Member
  • **
  • Posts: 73
    • View Profile
Re: My WIP dashboard / cockpit
« Reply #36 on: June 28, 2013, 12:57:21 am »
sammy i don't understand what you want. Can be more precisely to help you?
Logged

sammy4413

  • Approved Newbie
  • *
  • Posts: 18
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #37 on: July 14, 2013, 03:26:49 pm »
Quote from: H.Guedes on June 28, 2013, 12:57:21 am
sammy i don't understand what you want. Can be more precisely to help you?


or connect the wire the fuel consumption ? please
Logged

H.Guedes

  • Jr. Member
  • **
  • Posts: 73
    • View Profile
Re: My WIP dashboard / cockpit
« Reply #38 on: November 02, 2013, 03:19:27 am »
A little update ;)






And this is how the "thing" runs ;)



It's been difficult find some time to work in the simulador, but is some progress. For now all gauges are fully functional.

More to come....
« Last Edit: April 26, 2017, 07:00:19 am by H.Guedes »
Logged

gauthier

  • Approved Newbie
  • *
  • Posts: 18
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #39 on: December 31, 2013, 12:03:38 pm »
Hello,

I have exactly the same configuration, but I can not make the fuel gauge work  :'(

Can you tell me how you did it to make it work please? ???
Logged

H.Guedes

  • Jr. Member
  • **
  • Posts: 73
    • View Profile
Re: My WIP dashboard / cockpit
« Reply #40 on: January 01, 2014, 04:18:40 pm »
Quote from: gauthier on December 31, 2013, 12:03:38 pm
Hello,

I have exactly the same configuration, but I can not make the fuel gauge work  :'(

Can you tell me how you did it to make it work please? ???

On the black connector don't put pin 3 to ground.

Connect only pin 1 to fuel sensor and the pin 4 to speed sensor.

If don't work you need to change the parameters in simdash
Logged

paulieGTR

  • Approved Newbie
  • *
  • Posts: 21
    • View Profile
Re: My WIP dashboard / cockpit
« Reply #41 on: January 10, 2014, 12:38:34 pm »
snip...
Quote from: Jadran on June 05, 2013, 06:51:27 pm
Today I disassembled everything...


Hi Jadran.  :)
Hi H.G  :)

Yesterday i picked up a BMW 3.18ti cluster, i managed to get the White, Blue and Black wire loom plugs included.
Just a quick.??

When i look @ the rear of the clocks from left to right, i see the white socket on the left and moving across i then see the blue and black socket.
But when i look closely at the sockets i notice that the pin position numbers don't match the picture above.

ie. White Socket above:
Top... from the left, pic has pin #01 and #14   ---  mine from the top left is #26 and #13

Bottom... from the left, pic has pin #13 and #26   ---  mine from the bottom left is #14 and #01.

Sooo...
Should i make the connections using the exact "pin numbers" above, not caring where the actual pins are located on my sockets.??

Or should i make the connections of the wires using the exact, positions above, not caring where the pin numers are on my sockets.??

I hope this makes sense mafrien'.

tyvmia...
« Last Edit: January 10, 2014, 12:49:43 pm by paulieGTR »
Logged
Opinion "A belief or assessment based on grounds short of proof"

Jadran

  • Full Member
  • ***
  • Posts: 132
    • View Profile
    • Email
Re: My WIP dashboard / cockpit
« Reply #42 on: January 10, 2014, 03:23:30 pm »
Do not let confuse the numbers on cluster and numbers on the connector ...
Connect how shown on picture if you have all 3 connectors (If this is a cluster for E36)  ;)


EDIT:
Here is pic for blue connector:

http://www.gophoto.it/view.php?i=http://i405.photobucket.com/albums/pp137/steve23002/dash3.jpg#.UtARYLSOOUk

and black

http://www.gophoto.it/view.php?i=http://www.atcy66.dsl.pipex.com/bmw/obc/4.jpg#.UtARRbSOOUk

If you disassembling connector will see numbers on connector..

EDIT 2:

If you do not have the connectors used numbers as printed on the cluster
« Last Edit: January 10, 2014, 03:43:26 pm by Jadran »
Logged

H.Guedes

  • Jr. Member
  • **
  • Posts: 73
    • View Profile
Re: My WIP dashboard / cockpit
« Reply #43 on: January 10, 2014, 06:50:25 pm »

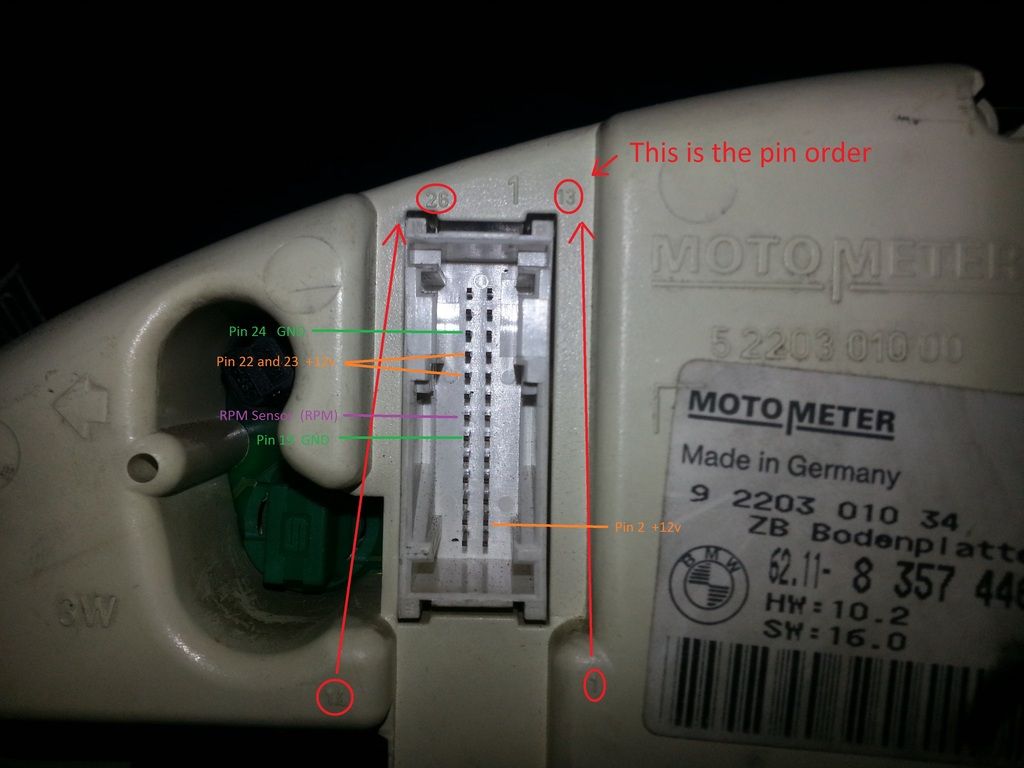

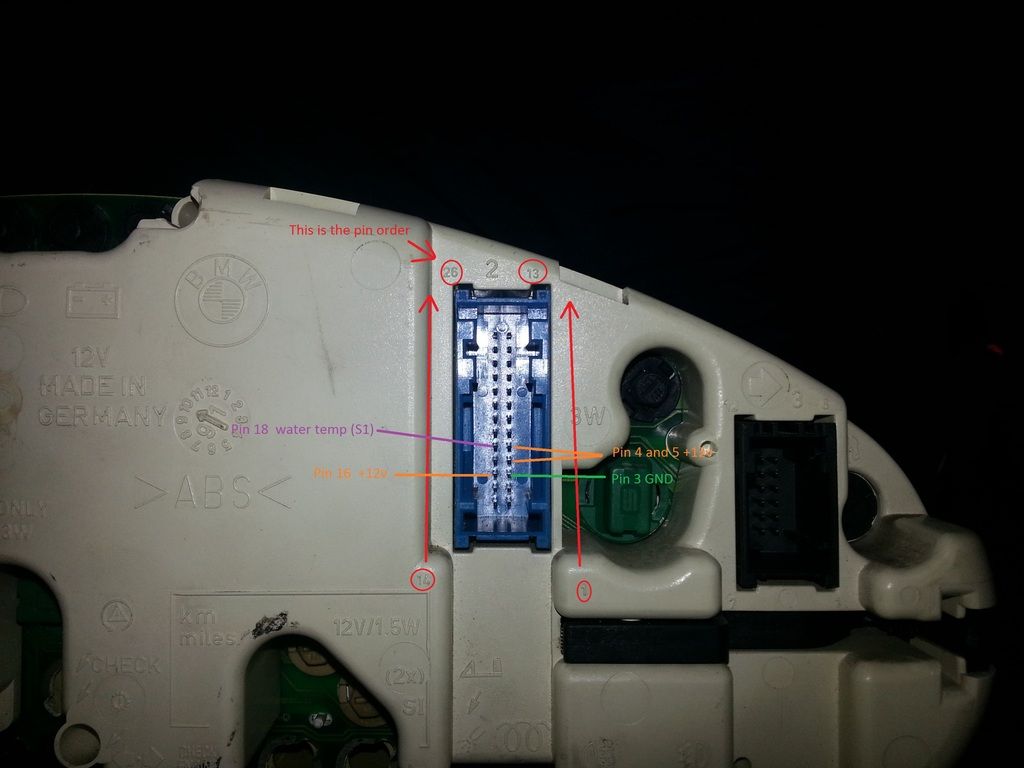

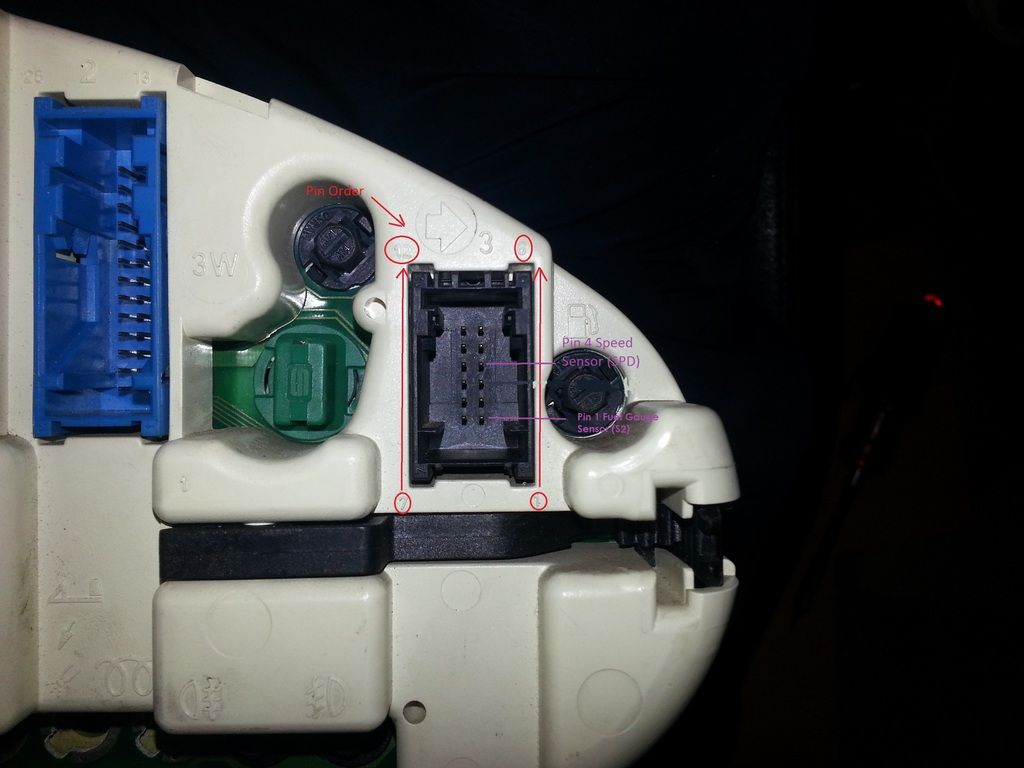

Use the pinout of these pictures that i took to help others users








« Last Edit: April 26, 2017, 06:43:44 am by H.Guedes »
Logged

paulieGTR

  • Approved Newbie
  • *
  • Posts: 21
    • View Profile
Re: My WIP dashboard / cockpit
« Reply #44 on: January 12, 2014, 09:27:23 pm »
Quote from: Jadran on January 10, 2014, 03:23:30 pm
Do not let confuse the numbers on cluster and numbers on the connector ...

If you disassembling connector will see numbers on connector..

EDIT 2:

If you do not have the connectors used numbers as printed on the cluster
Thankyou Jadran, that clears things up for me. :)


Quote from: H.Guedes on January 10, 2014, 06:50:25 pm
Use the pinout of these pictures that i took to help others users
Thankyou also H.G.

What can i say... the pics are awesome and very clear.

Again guys, thankyou both for your help. 8) :)

EDIT:
Ok guys, i have a slight problem... :-[

I Connected only pin 1 to fuel sensor and the pin 4 to speed sensor(black connector), but the fuel level gauge sometimes moves and then seems stuck.
So for me the fuel gauge is not functioning properly, everything else does.

Do i need the OBC to make fuel consumption needle work.??
Anyone have the fuel level gauge settings for 25,50,75% etc. of cfg screen in progauge.??

Any help would be greatly appreciated.
Thankyou everyone for all the help you've already given.  :)
« Last Edit: January 13, 2014, 09:34:57 pm by paulieGTR »
Logged
Opinion "A belief or assessment based on grounds short of proof"
